End Cap-KTC - Tube & Connector
l KF TYPE l KFN TYPE l KFH TYPE l KFPP TYPE l KFNH TYPE l KFPH TYPE l
l KCS TYPE l KCE TYPE l KCM TYPE l KC TYPE l KTC TYPE l KST /R l

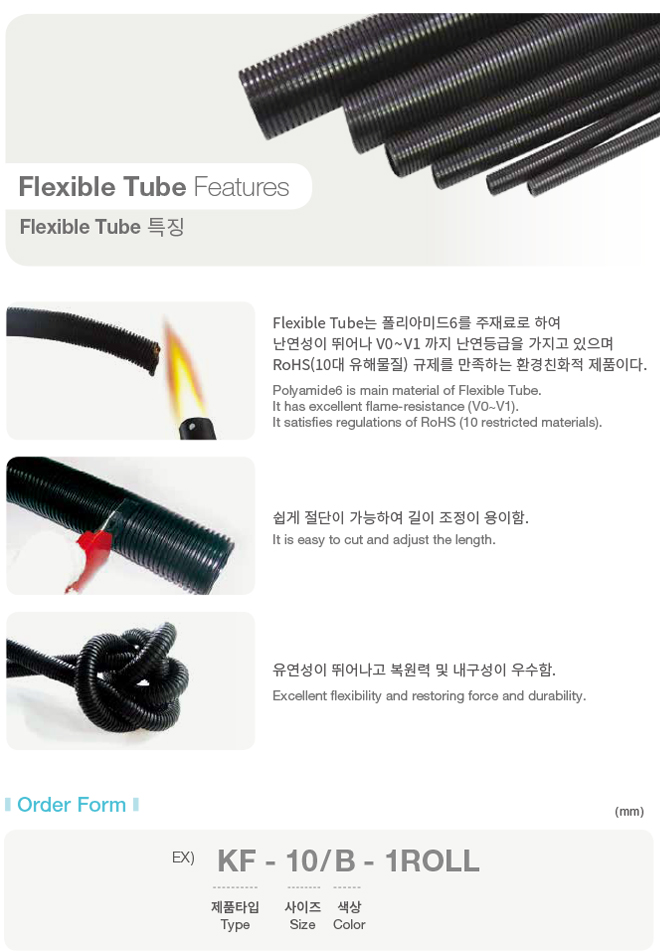

Flexible Tube and Connector are eco-friendly products made of materials that follow RoHS (10 restricted materials) regulations. Flexible Tube has a flame retardant rating from V0 to V1, can be cut easily, and has excellent resilience and durability. Connectors have excellent clamping force with flexible tubes, so they rarely seperate the tube due to environmental factors.
KTC TYPE
Material : N.B.R (Nitrile butadiene Rubber)
Purpose of use : Tube end finishing
How to use : Just put on tube end
For tube type : Corrugated tubes
Color : Black, Gray

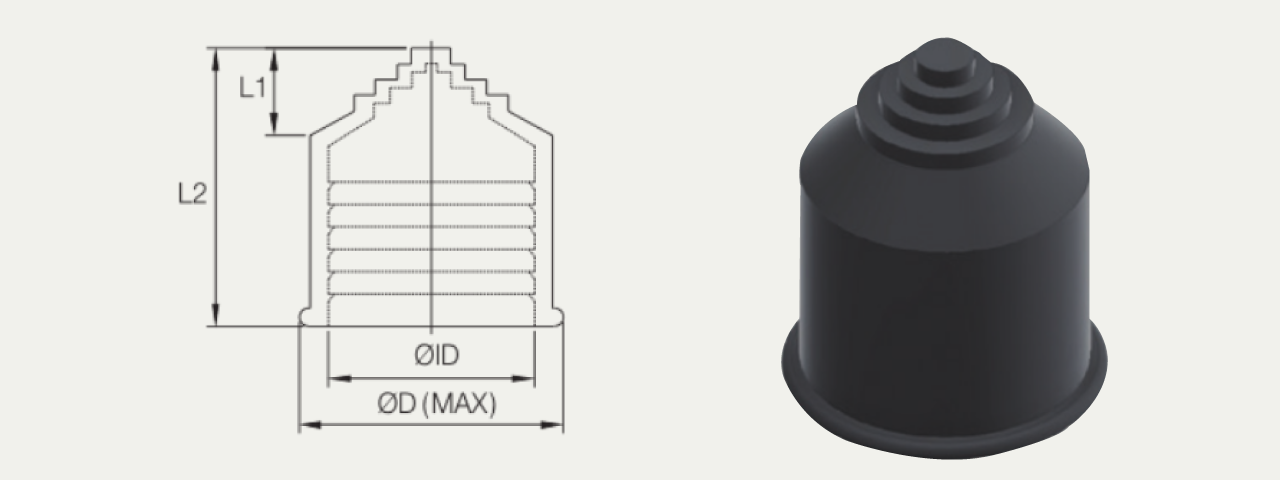

Structure :
| Product No. | ID | D | L1 | L2 | Applicable Tube | Weight | |
| Black | Gray | mm (inc) | mm (inch) | mm (inch) | mm(inc) | ||
| KTC-07/B | KTC-07/G | 10 (0.39) | 16.9 (0.67) | 28.3 (1.11) | 8.8 (0.35 | 7 | 2.1 |
| KTC-10/B | KTC-10/G | 13 (0.51) | 20.2 (0.8) | 32 (1.26) | 10.8 (0.43) | 10 | 2.5 |
| KTC-12/B | KC-12/G | 16 (0.63) | 25 (0.98) | 35 (1.38) | 15 (0.59) | 12 | 5.5 |
| KTC-16/B | KTC-16/G | 21.5 (0.85) | 29.5 (1.16) | 35 (1.38) | 12.5 (0.49) | 16 | 7.4 |
| KTC-22/B | KTC-22/G | 29 (1.14) | 37 (1.46) | 39 (1.54) | 12.2 (0.48) | 22 | 12.2 |
| KTC-28/B | KTC-28/G | 34.5( 1.36) | 44 (1.73) | 41 (1.61) | 14.2 (0.56) | 28 | 16.3 |
| KTC-36/B | KTC-36/G | 43 (1.69) | 54 (2.13) | 57 (2.24) | 22 (0.87) | 36 | 25.9 |
| KTC-48/B | KTC-48/G | 54.8 (2.15) | 64 (2.52) | 57 (2.24) | 22 (0.87) | 48 | 34.9 |
Specification:
