KCM TYPE
Material : Polyamide 6 (PA6)
Temperature Range : -40 ~ +125 (Short term 150)
Protective : IP67acc
Application : Automation machines, Machine tools, Semiconductor plant, Industrial machines
Color : Black, Gray

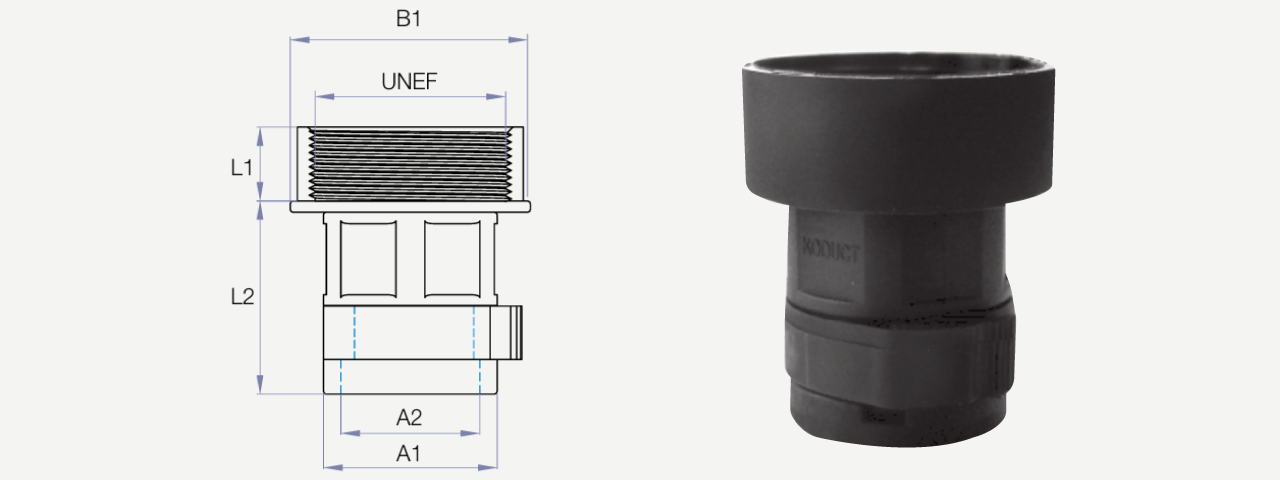

Structure :
| Product No. | Screw Thread (UNEF) | Shell Size | L1 | L2 | A1 | A2 | B1 | Applicable Tube | Weight | |
| Black | Gray | mm (inc) | mm (inch) | mm (inch) | mm(inc) | mm(inc) | ||||
| KCM-1616/B | KCM-1616/G | 7/8-20UNEF | 16, 16S | 15 (0.59) | 30 (1.18) | 30 (1.18) | 22 (0.87) | 26 (1.02) | 16 (0.63) | 14.8 |
| KCM-1618/B | KCM-1618/G | 1-20UNEF | 18 | 15 (0.59) | 30 (1.18) | 30 (1.18) | 22 (0.87) | 29.4 (1.16) | 16 (0.63) | 15.8 |
| KCM-1620/B | KCM-1620/G | 1 3/16-18UNEF | 20, 22 | 15 (0.59) | 30 (1.18) | 30 (1.18) | 22 (0.87) | 34 (1.33) | 16 (0.63) | 16.4 |
| KCM-1628/B | KCM-1628/G | 1 7/16-18UNEF | 24, 28 | 15 (0.59) | 30 (1.18) | 30 (1.18) | 22 (0.87) | 40.5 (1.60) | 16 (0.63) | 18.1 |
| KCM-2222/B | KCM-2222/G | 1 3/16-18UNER | 20, 22 | 17 (0.67) | 32 (1.26) | 40 (1.57) | 29.5 (1.161) | 34.5 (1.36) | 22 (0.87) | 25.8 |
| KCM-2228/B | KCM-2228/G | 1 7/16-18UNEF | 24, 28 | 17 (0.67) | 32 (1.26) | 40 (1.57) | 29.5 (1.161) | 40.5 (1.60) | 22 (0.87) | 28.1 |
| KCM-2828/B | KCM-2828/G | 1 7/16-18UNEF | 24, 28 | 17 (0.67) | 37 (1.46) | 46 (1.81) | 35 (1.38) | 40.5 (1.60) | 28 (1.10) | 32.4 |
| KCM-2832/B | KCM-2832/G | 1 3/4-18UNEF | 32 | 17 (0.67) | 35 (1.38) | 46 (1.81) | 35 (1.38) | 48.5 (1.91) | 28 (1.10) | 32.9 |
| KCM-3636/B | KCM-3636/G | 2-18UNS | 36 | 17 (0.67) | 35 (1.38) | 55.5 (2.19) | 43.5 (1.71) | 55.8 (2.20) | 36 (1.42) | 49.6 |
