KM715/10(25) Smart Carrier
Smart Carrier : Light and durable, using engineering plastics with excellent impact strength. Apply detachable radius pin, easily adjust radius by changing only radius pin. Also, it is a unique and smart carrier that can maximize the efficiency of material management. Dual link-connecting structure, it provides excellent tension and durability

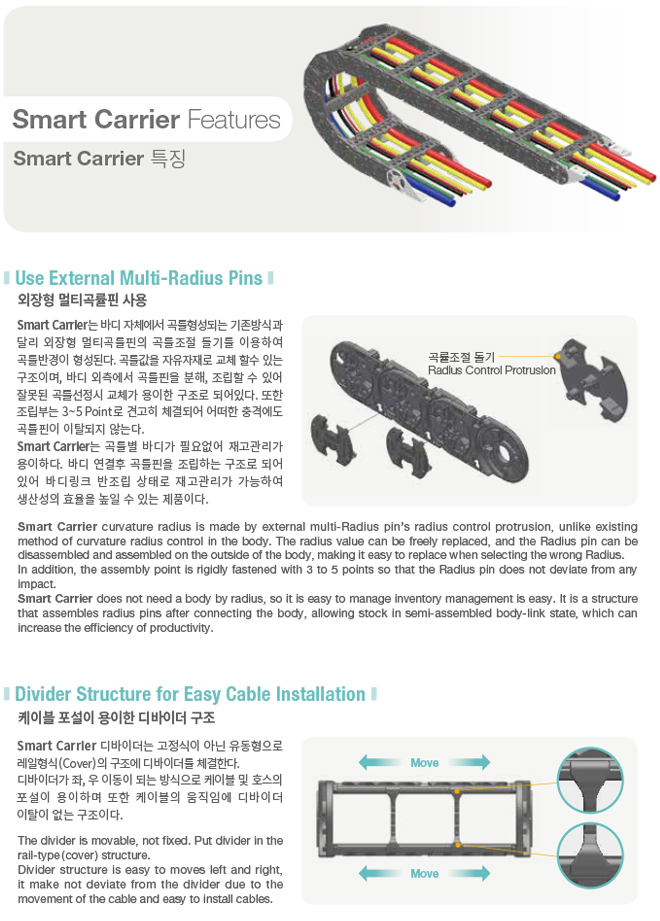

Smart Carrier curvature radius is made by external multi-Radius pins radius control protrusion, unlike existingmethod of curvature radius control in the body. The radius value can be freely replaced, and the Radius pin can b edisassembled and assembled on the outside of the body, making it easy to replace when selecting the wrong Radius. In addition, the assembly point is rigidly fastened with 3 to 5 points so that the Radius pin does not deviate from any impact.
Applications : Gantry robot equipment, Machine tool, Welding equipment, Cutting equipment etc.

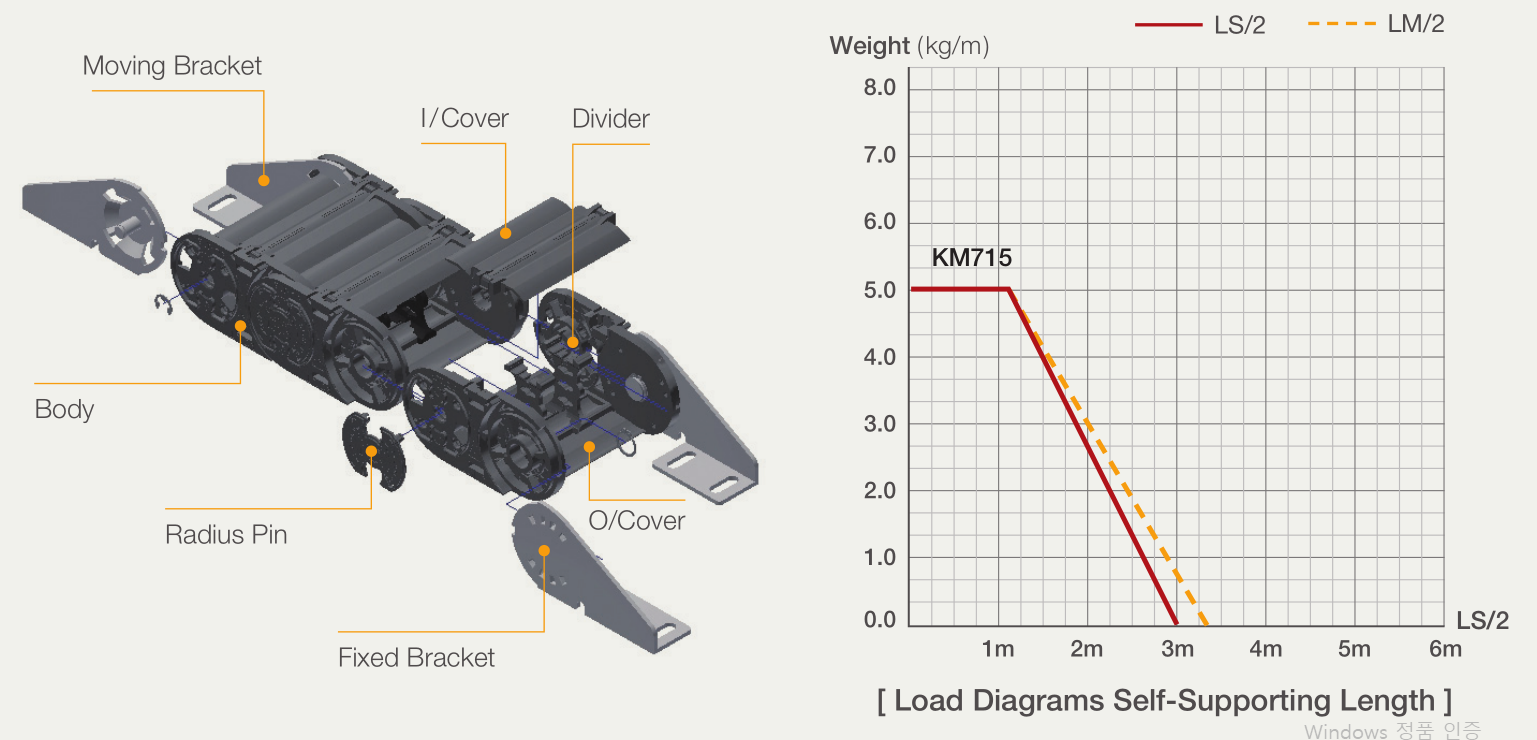

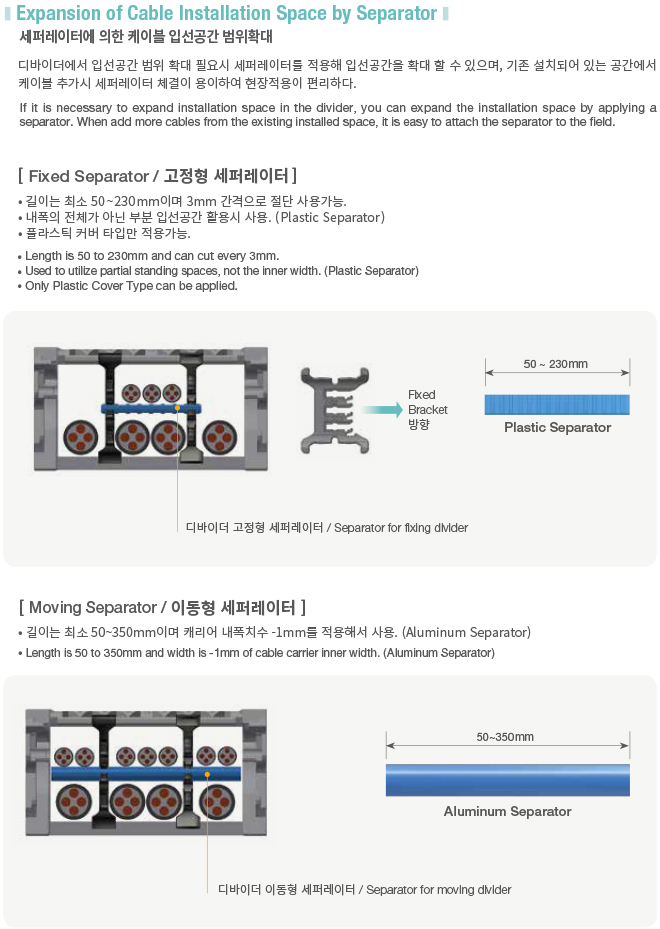

Structure:

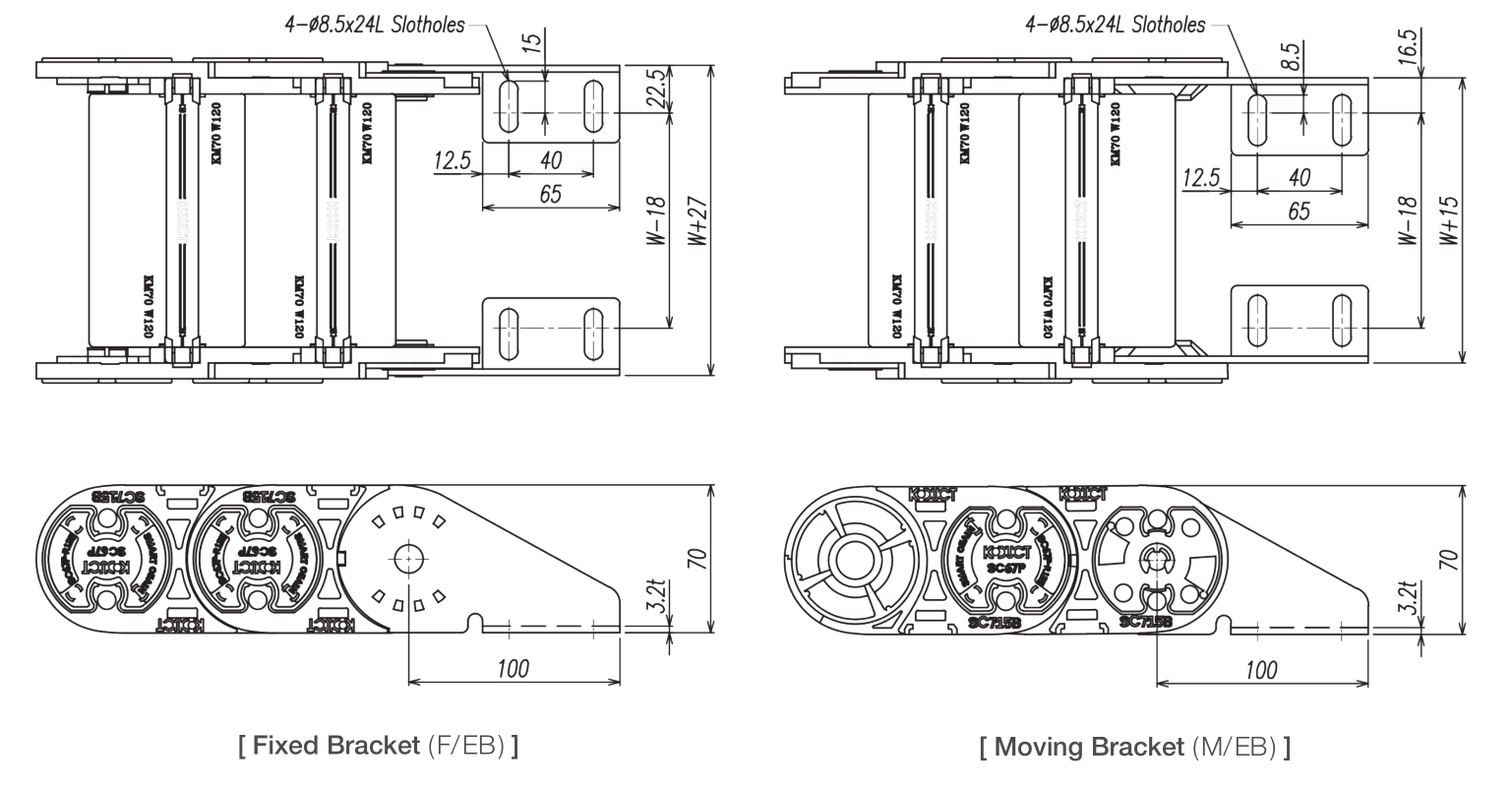

End BRACKET :

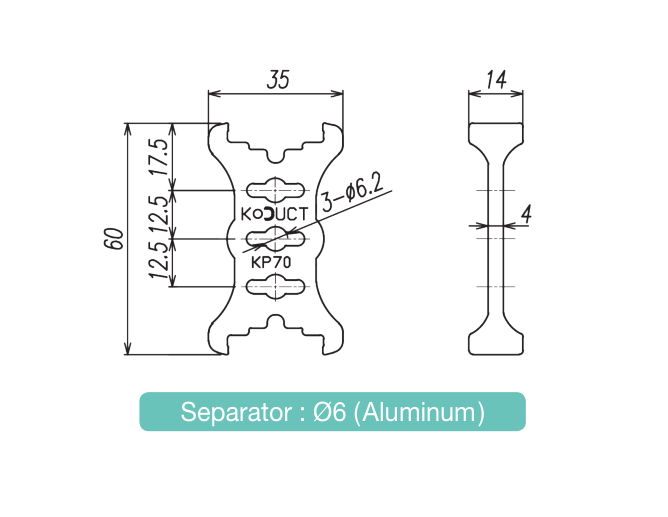

Carrier Link :

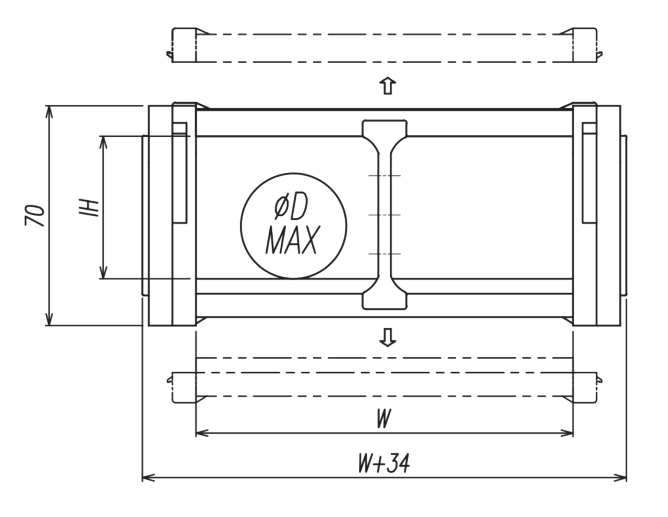

Section A-A

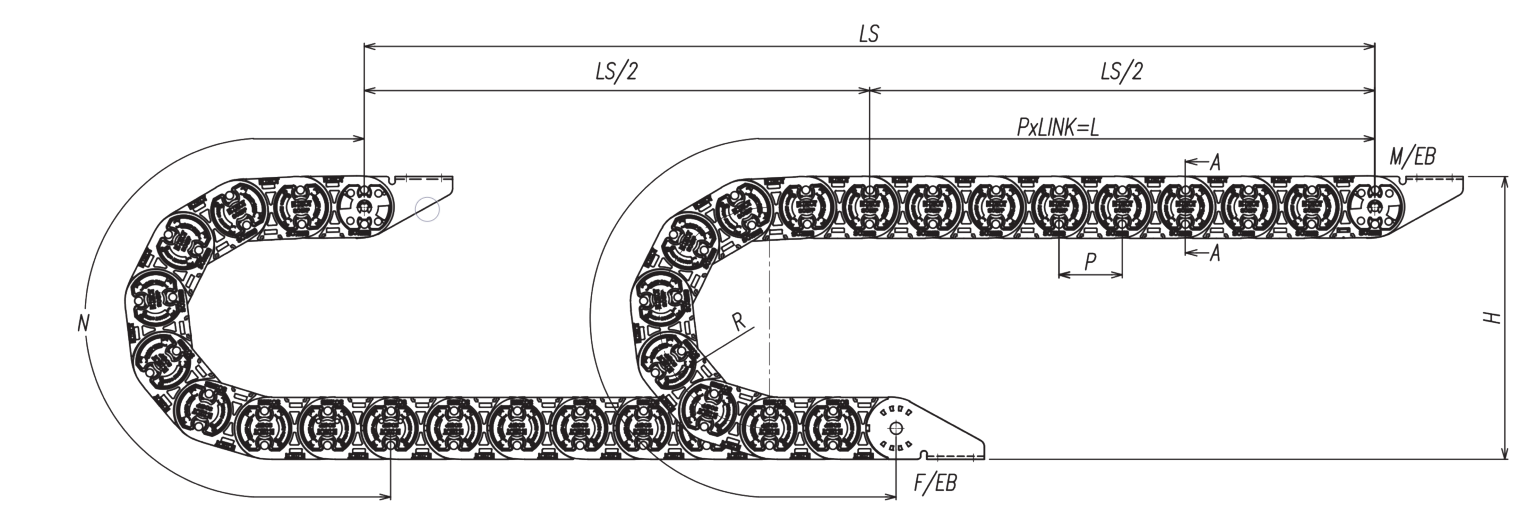

Specification :
| Type | W | Radius | Pitch | Height | N | IH | ÃD | DVDR | 1 m | EB Set |
| mm (inc) | mm (inc) | mm (inc) | mm (inch) | mm (inc) | mm (inc) | max | (ea) | (kg) | (kg) | |
| KM715/10(25) | 75 (2.952) | 100(3.937) 125(4.921) 150(5.906) 200(7.874) 250(9.843) | 71.5 (2.815) | 270(10.630) 320(12.598) 370(14.567) 470(18.504) 570(22.441) | 600(23.622) 679(26.732) 757(29.803) 914(35.984) 1,071(42.165) | 37(1.456) 41(1.614) 43(1.692) 44(1.732) 45(1.771) | Ã16 Ã20 Ã25 Ã33 Ã41 | 0 1 2 | 3.06 3.38 4.5 | 0.75 |
| 100 (3.937) | ||||||||||
| 120 (4.724) |
