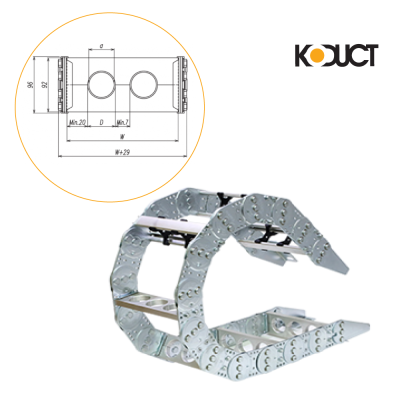

CDKH130 - Steel Carrier
Steel Carrier : Increased bending strength for weight by embossing important parts of the body. To compensate for the sagging, apply the stopper structure to the body, FreeSpan was increased by more than 1m.
Depending on the environment of use, it is possible to customizing manufacture for different materials. Customizing manufacture by customer requirement is possible such as high load support/reverse rotation/vertical & horizontal conversion.
Applications : Crane, Heavy industry, Iron and steel mill facility, Cold stripping and rolling facility, Machining center etc. Especially heavy loaded machine.

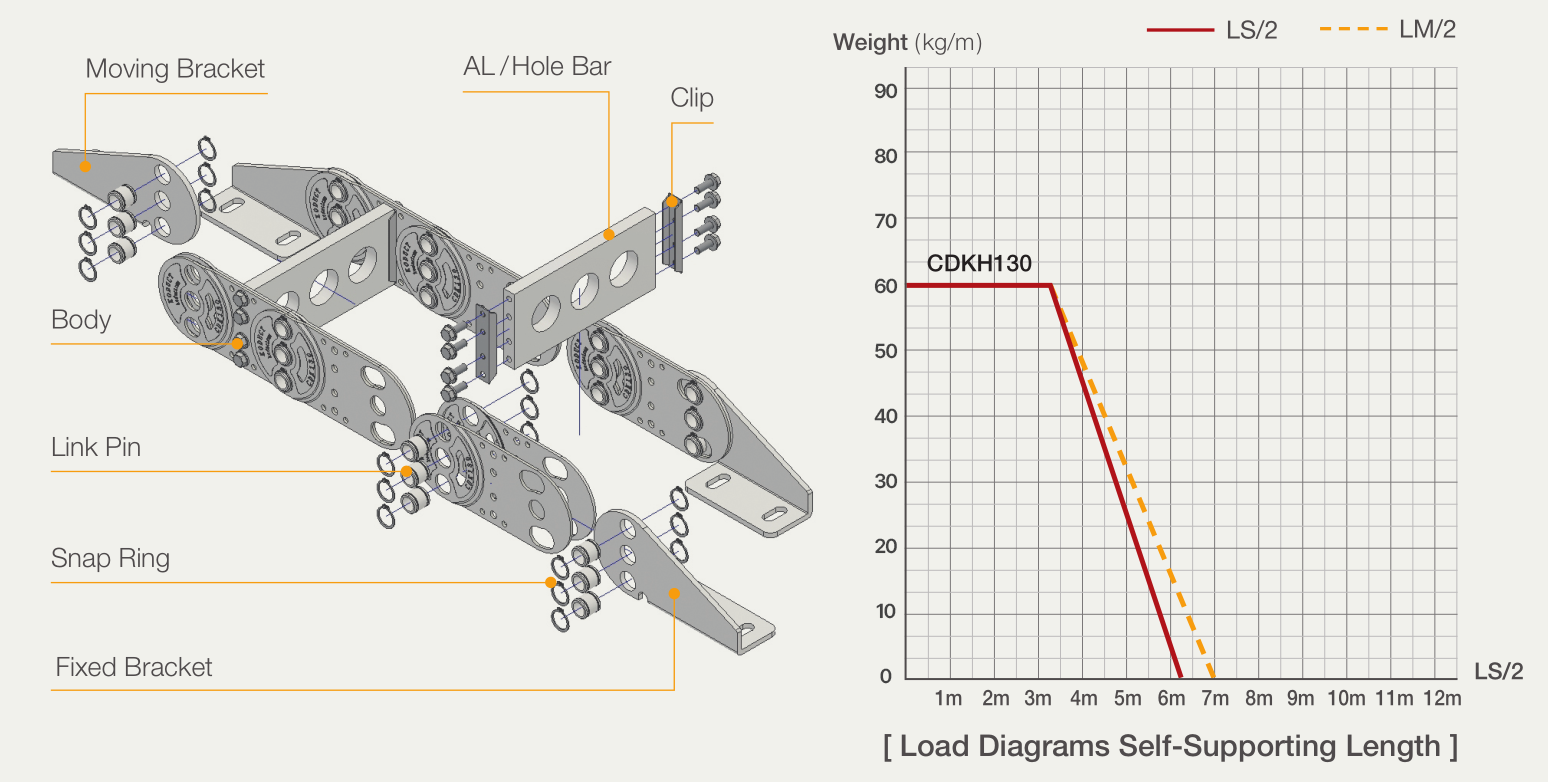

Structure:
End BRACKET:
Carrier Link:

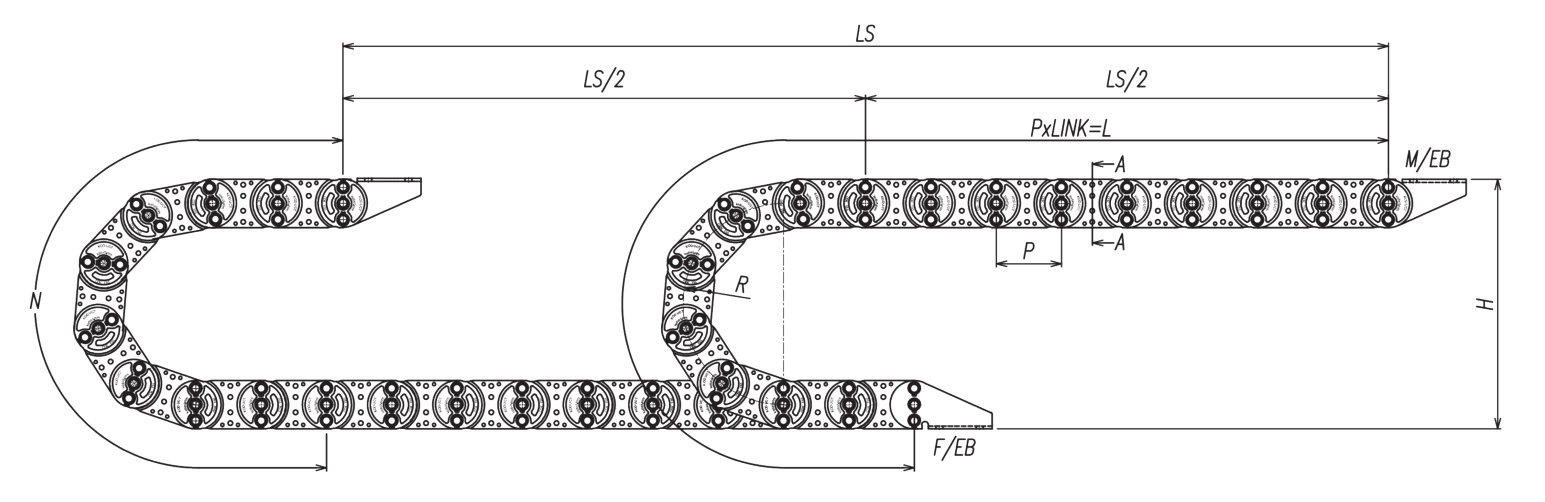

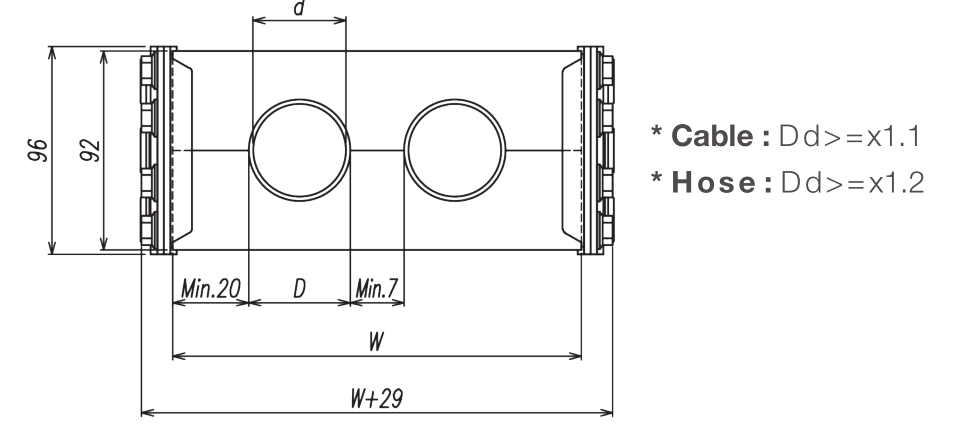

Section A-A:
Specification:
| Type | W | Radius | Pitch | Height | N | 1 m | EB Set |
| mm (inc) | mm (inc) | mm (inc) | mm (inc) | mm (inc) | (kg) | (kg) | |
| CDKH130 | 100(3.937) | 200(7.874) 250(9.843) 300(11.811) 400(15.748) 500(19.69) | 130 (5.118) | 496(19.528) 596(23.465) 696(27.402) 896(35.276) 1,096(43.149) | 1,018(40.079) 1,175(46.260) 1,332(52.441) 1,646(64.803) 1,960(77.17) | 15.740 16.100 16.460 17.170 17.890 18.610 19.330 20.040 | 3.170 |
| 125(4.921) | |||||||
| 150(5.906) | |||||||
| 200(7.874) | |||||||
| 250(9.843) | |||||||
| 300(11.811) | |||||||
| 350(13.780) | |||||||
| 400(15.748) |
