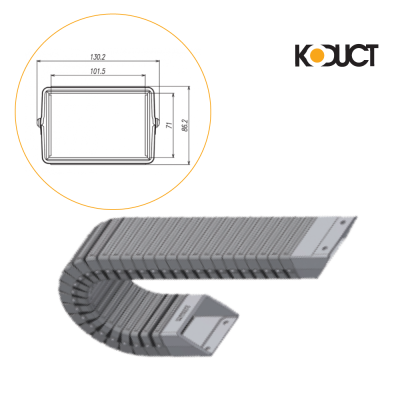

KCFM120 CalmlyFlex

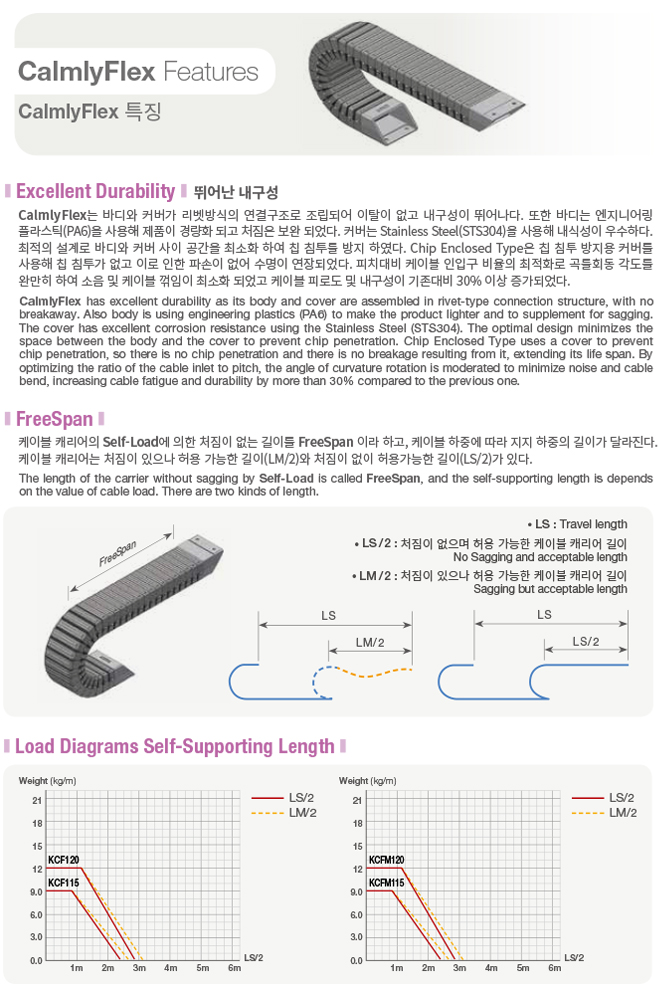

CalmlyFlex : Is more durable than the existing Duct Type due to the combination of steel and plastic body parts. The ratio of cable entrances to pitch is optimized to minimize cable and hose abrasion. It's a structure that links connect with rivets so there's almost no link deviating. It has no damage
caused by the chip penetration due to special structure.
Applications : Machine tools, Automations machines, Medical equipment, Gantry robot equipment

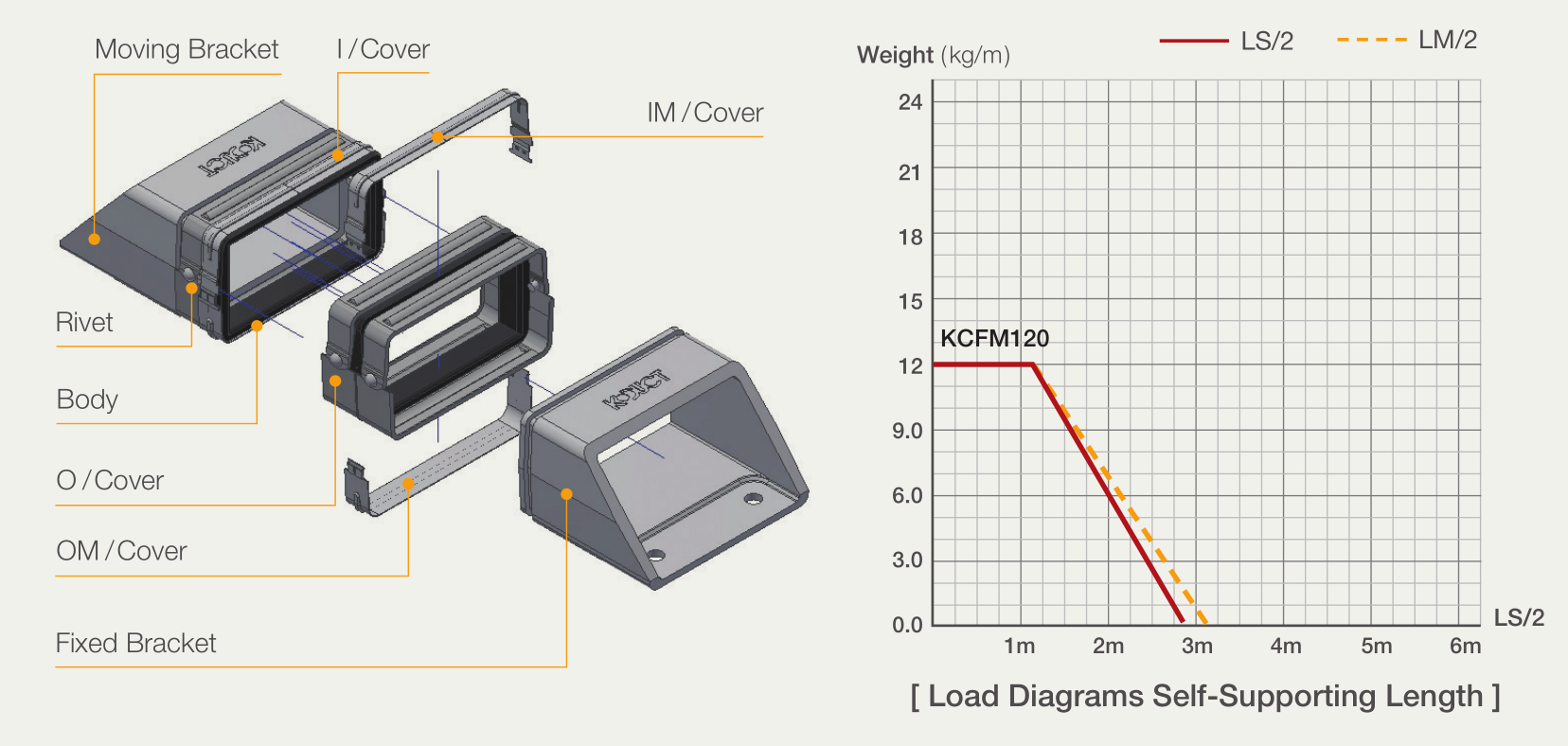

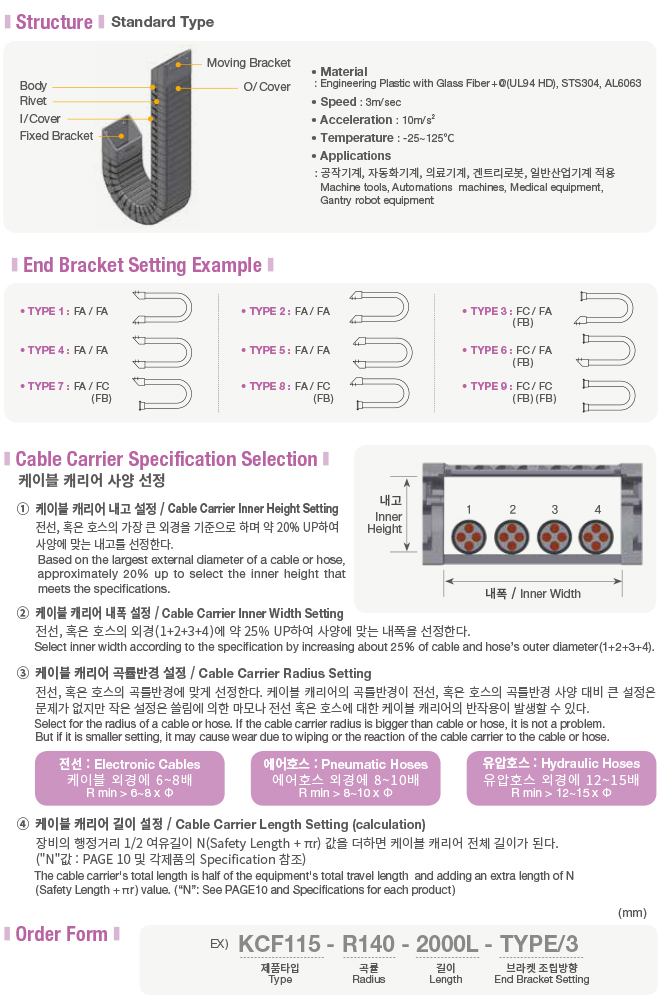

Structure :

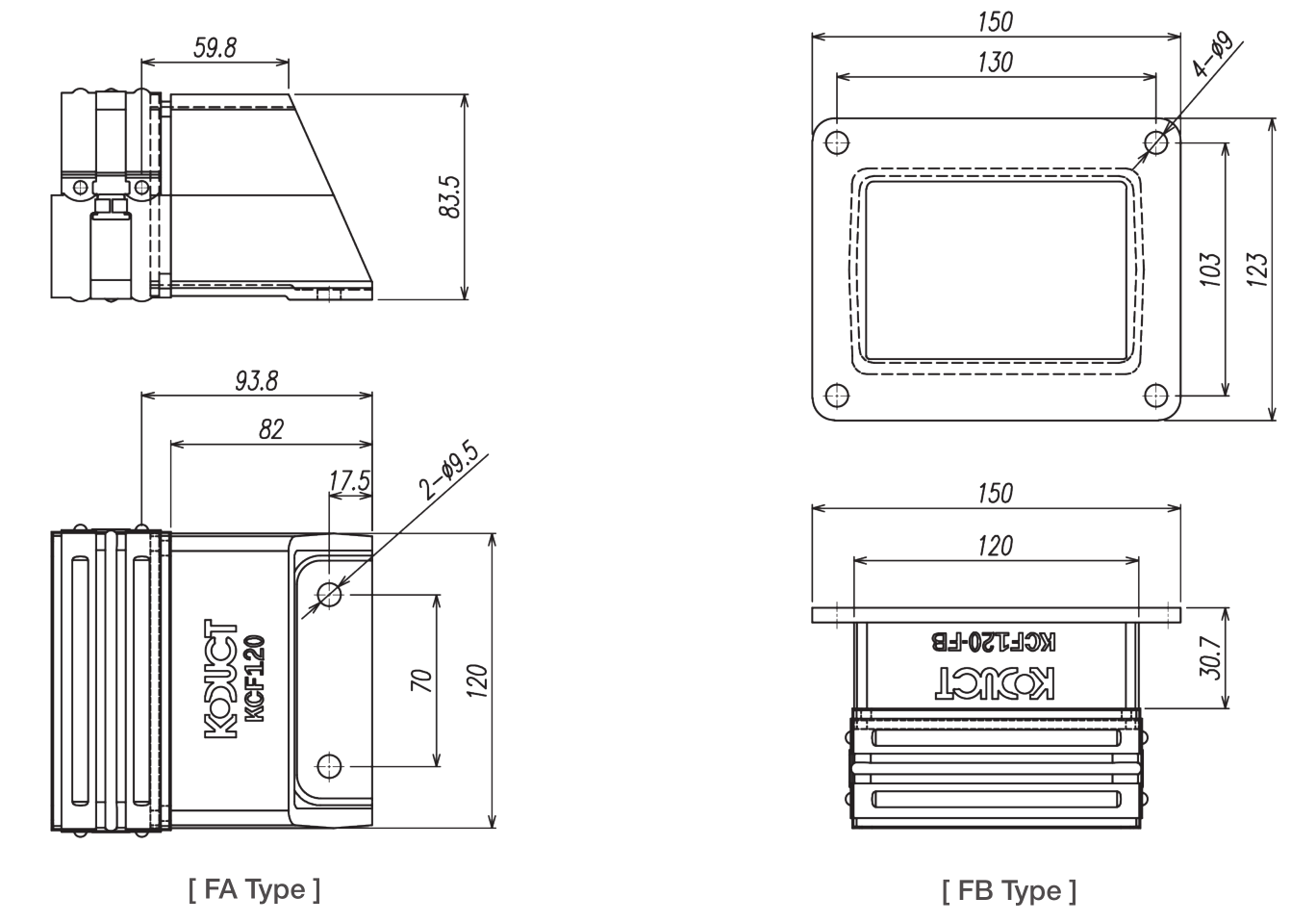

End BRACKET :
Carrier Link :

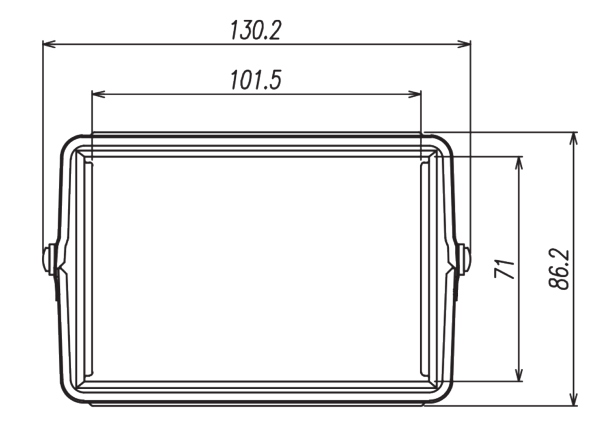

Section A-A:

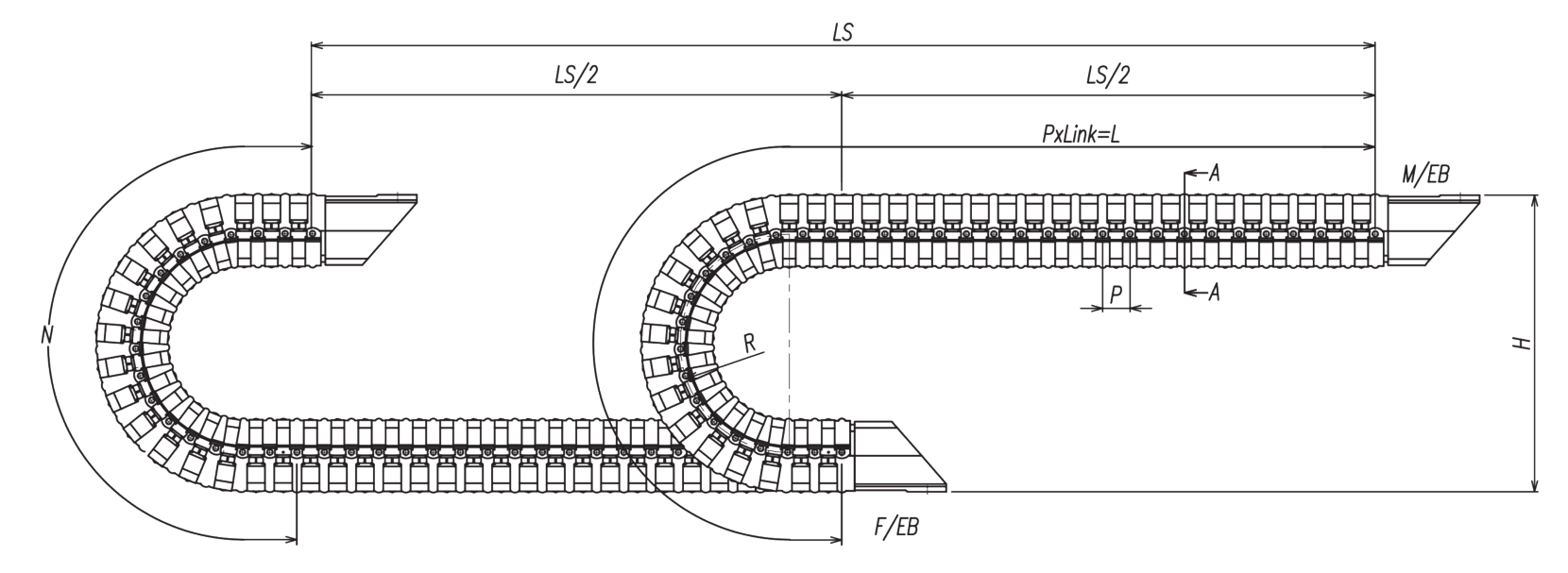

Specification:
| Type | Radius | Pitch | Height | N | 1 m | EB Set |
| mm (inc) | mm (inc) | mm (inc) | mm (inc) | (kg) | (kg) | |
| KCFM120 | 150 (5.901) | 25 (0.984) | 392 (15.43) | 580 (22.835) | 4.82 | FA : 0.39 FC : 0.45 |
| 200 (7.874) | 492 (19.37) | 730 (28.740) | ||||
| 225 (8.858) | 542 (21.339) | 810 (31.889) | ||||
| 300 (11.811) | 692 (27.244) | 1,050 (41.339) |
(1 inch = 25.4 mm)
