SRST100 Cable Track System
Cable Track System : It is suitable for low- and high-speed (0.1 to 5m/sec) operation and moves in an Caterpillar system so it makes less vibration and noise also it can increases the life span of the cable carrier by three to four times.
It is suitable for long direction of travel more than 100m, and where damage to the cable carrier is occurred due to inertial forces against high loads in the direction of movement, and where precision work is difficult due to vibration of movement.
Applications : Crane, Heavy industry, iron and steel mill facility, plant facility, cold stripping and rolling facility, machining center and most of industrial applications.

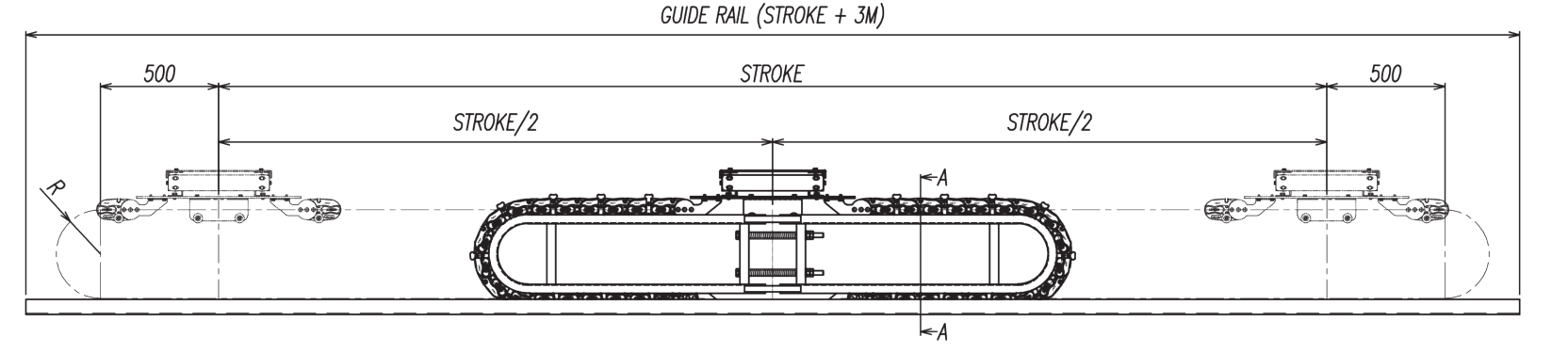

Structure:
Carrier Link:

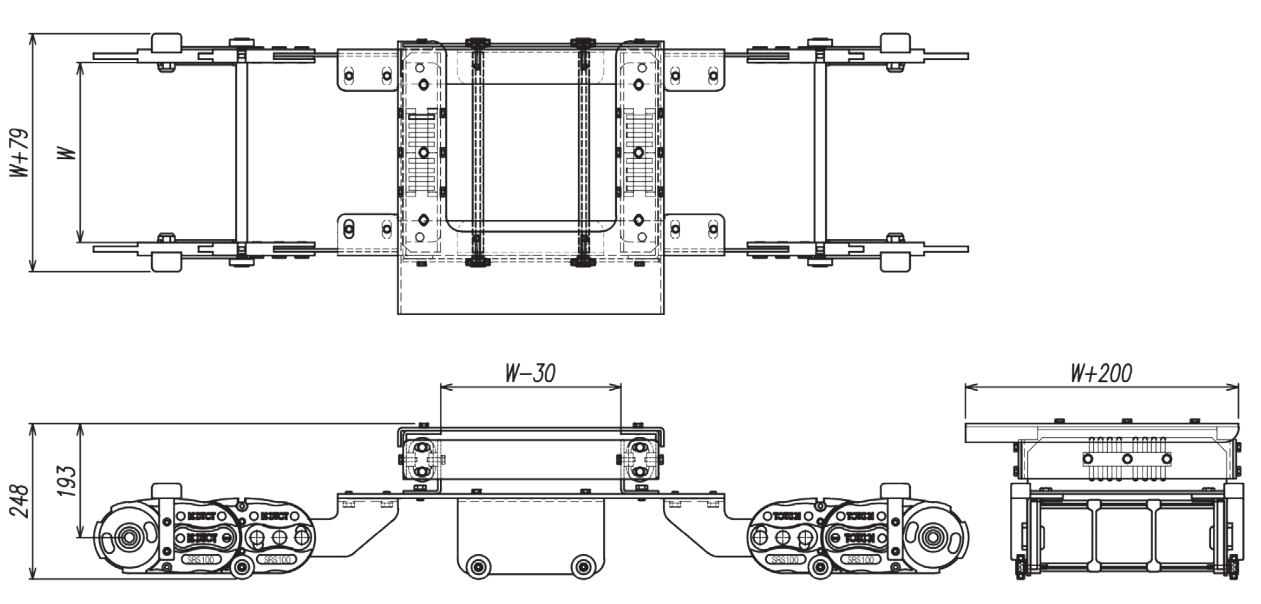

Moving Device :

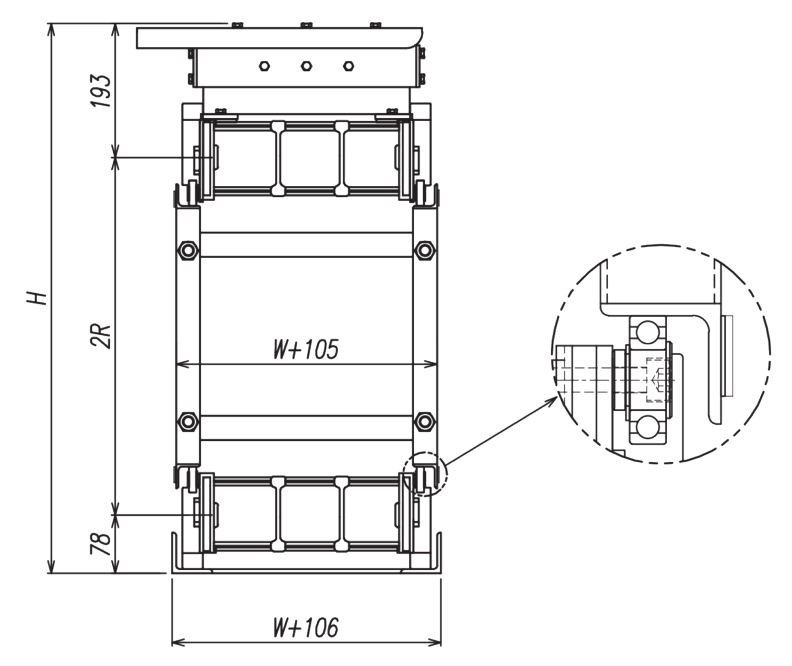

Section A-A:
Fixed Plate :

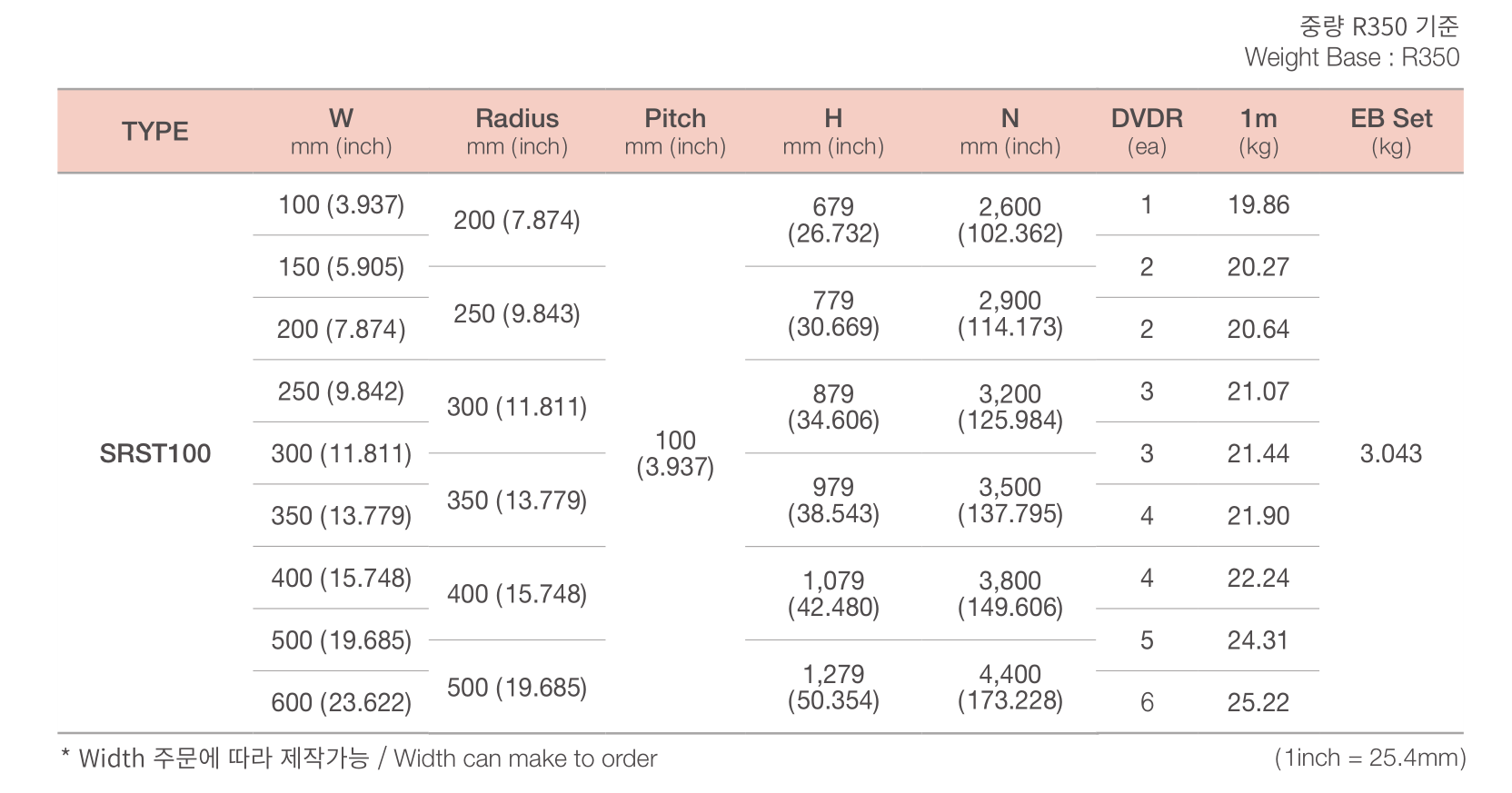

Specification:
