The tool, which is mounted at the end of the industrial multi-joint robot, connects various cables and hoses depending on the purpose of the robot. If the length of the cables and hoses is installed in longer for various movements of the robot, it will be difficult to perform continuous operation due to entangling or twisting of surrounding structures, or if installed in short, the cables and hoses will be pulled and damaged. If the robot's operation causes the cables and hoses to bended below than the minimum allowed radius of curvature, the cables and hoses will be damaged by accumulation of fatigue. The dresspack system protects cable and hoses installed in industrial multi-joint robots and enables optimized robot operation according to working environment.

Function of the Dresspack System
- Protecting cables and hoses from external working environments with corrugated tube.
- Corrugated tube prevent cables and hoses from bending below the minimum radius of curvature.
- Retraction equipment prevents corrugated tubes (wire and hose) from twisting or stretching.
- Retraction equipment keep the corrugated tubes as close to the robot's arm as possible to prevent it from getting caught.
- Retraction equipment can responds to changes in the length of the corrugated tubes as the robot operates.

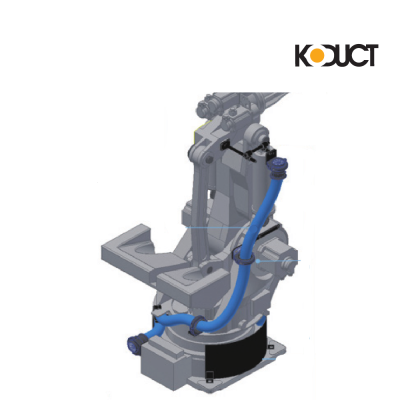

Structure :



Specification:
